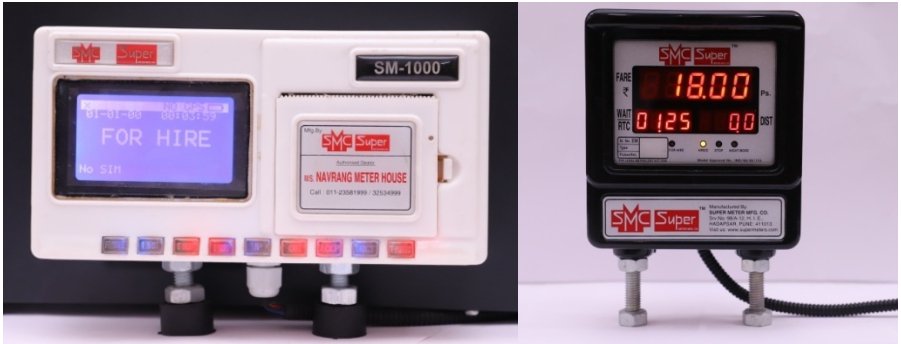

GSM + GPS + THERMAL PRINTER+ HALL EFFECT SENSOR + PANIC BUTTON + OBD/CAN
Key Features:
DELHI INTEGRATED MULTI-MODAL TRANSIT SYSTEM (DIMTS) approved.
Graphic Display 128x64.
Real Time Clock.
Hall Effect Sensor attached for distance calculation.
Panic Button for passenger.
Tamper Proof Design and Body.
Tracking - GPS based Real Time Tracking.
16 MB Memory for offline data logging.
Display Fare and Distance in large fonts.
Meter Status Display.
Working status indicator.
Keys for Trip Start, Trip End, Hire, Vacant, Retired Mode, Printing, Dispatching, Scrolling and Panic Alert.
Fare Meter has inbuilt memory to Store 15000 position points log in case of disconnection from the Central Server.
Capability to integrate two-way communication with server.
Meter has complete dispatch system for implementing dispatch management from remote server.
Membrane type keypad with 9 keys.
Inbuilt 2” inch thermal printer with over heat protection.
Maximum current for printer < 1A.
Automatic fare change for day and night.
Transmission of Data on GPRS (primary mode of transmission) & SMS (used as back-up).
Parameters configurable over the air (supported by SMS as well).
Provision to indicate visually, the power, GPS, GPRS and device status.
Data update rate to server is configurable and Multiple modes are supported (Active, Normal & Standby).
Display Terminal & Buttons to support, Trip Start, Trip End, waiting (Visual Display), Panic Button & PANIC Mode will display in case the device is in the PANIC mode.
Battery Back-up up to 6 Hrs.**
Technical Specifications
| Technical Specification | Description |
|---|---|
| Product | Sub part of AFM |
| General Features | |
| Support EASY | Self-generated orbit prediction |
| Support EPO | For orbit prediction |
| Support AGPS | Assisted GPS |
| Support SBAS | Ranging (WAAS, EGNOS, GAGAN, MSAS) |
| Performance Data | |
| Receiver type | 22 tracking/66 acquisition-channel GPS L1, C/A code |
| Max. update rate | 10Hz |
| Sensitivity | Tracking: -165 dBm Reacquisition: -160 dBm Cold starts: -147 dBm |
| Time-To-First-Fix (TTFS) | Cold starts: 31 s (typical) Warm starts: 30s Hot starts: < 1s EPO Assist: 13s |
| Accuracy | Automatic Position: 2.5m CEP Speed: 0.1m/s |
| Other Features | |
| Output Format | NMEA 0183 |
| Antenna | Internal patch antenna |
| Environmental Data | |
| Operating Temperature © | -40 °C to + 85 °C |
